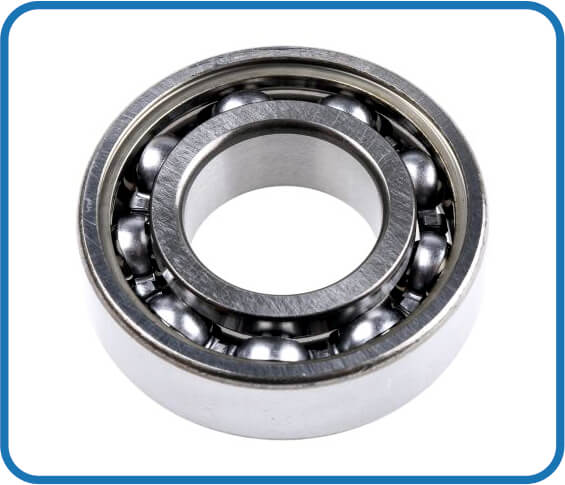

1. Deep Groove Ball Bearings

Single-row ball bearings are non-demountable. They are manufactured in multiple series - open, single- or double-covered. They are characteristic with silent run, low friction and are suitable even for high rpm. The rpm of covered bearings is limited with the type of the cover used.
Read More

2. Self Aligning Ball Bearings

Double-row self-aligning ball bearings are non-demountable. They are made in multiple series as open. They are characteristic with low friction and are suitable for higher rpm. The double-row self-aligning ball bearings are manufactured with cylindrical or conical opening, the taper ration of which is 1:12.
The bearings are fitted straight onto the conical pintle of the shaft, or by means of an adapter sleeve onto a cylindrical pintle.
These bearings can transmit radial and limited axial forces.
Read More

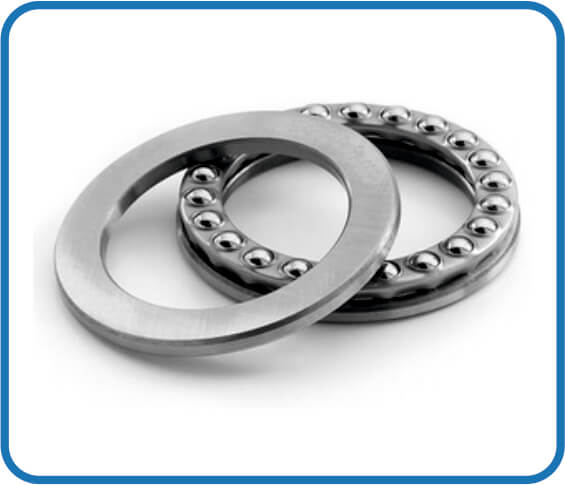

3. Thrust Ball and Roller Bearings

Axial ball bearings are demountable, the shaft ring, the body ring and the cage with balls are assembled separately. They are manufactured in multiple series. They are supplied as single-directional or bidirectional.
The single-row axial bearings consist of a shaft ring with an orbit, a cage with balls and a body ring with an orbit. These bearings can transmit axial load in one direction only. The bearings must not be exposed to radial load.
Read More

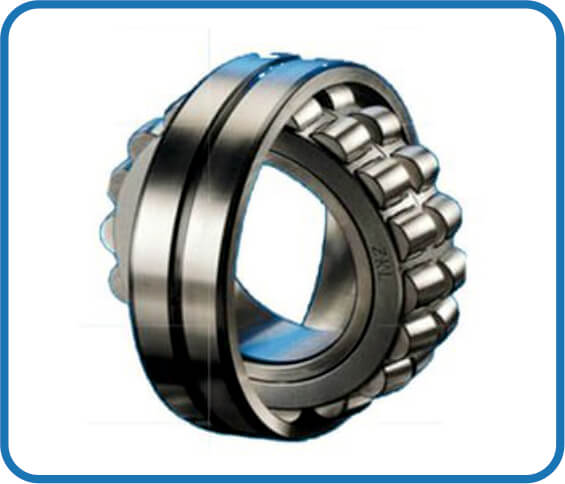

4. Spherical Roller Bearings

Double-row spherical-roller bearings are non-demountable. They are manufactured in multiple series.
Double-row spherical-roller bearings are manufactured either with cylindrical or conical opening, the taper ratio of which is either 1:12 or 1:30.
The bearings are fitted straight onto the conical pintle of the shaft or, by means of an adapter sleeve or tightening bushing, onto a cylindrical pintle.
Read More

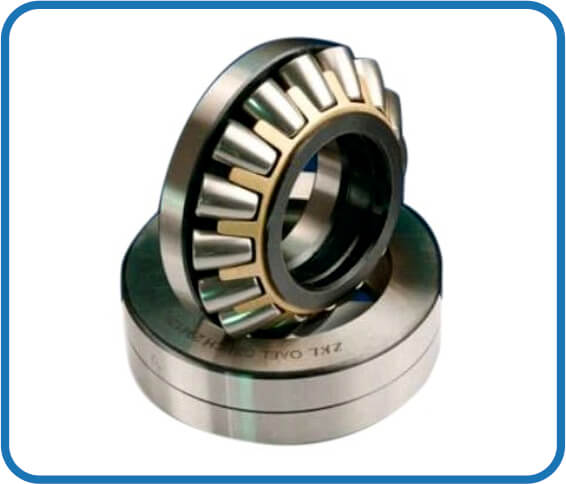

5. Spherical Roller Thrust Bearing

Axial spherical-roller bearings are demountable, the shaft ring with the cage and the spherical rollers and the body ring can be assembled separately. They are manufactured in multiple series.
The load of axial spherical-roller bearings is transmitted from one orbit to another at a certain angle which enables also radial load, besides axial load. Axial spherical-roller bearings feature high rigidity.
Read More

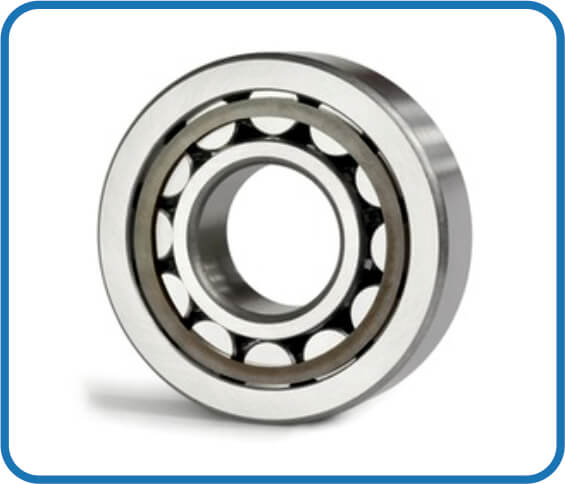

6. Cylindrical Roller Bearings

Single-row roller bearings are demountable, the ring with pilot flanges together with the cage with rollers and the second ring can be assembled separately. They are manufactured in multiple series in basic designs NU, N, NJ and NUP.
The bearings feature high rigidity, low friction, the ability to transmit high radial loads and are suitable for high rpm.
Read More

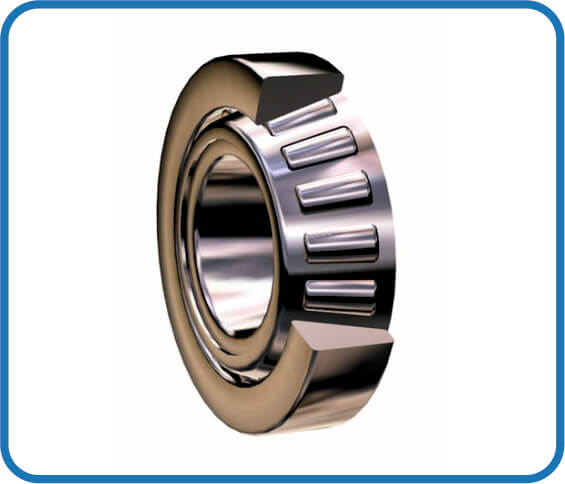

7. Taper Roller Bearings

Single-row conical bearings are demountable, the inner ring with a cage and roller elements and the outer ring are assembled separately. They are manufactured in multiple series. They feature high rigidity, low friction and the ability to transmit high radial and single-direction axial load.
Read More

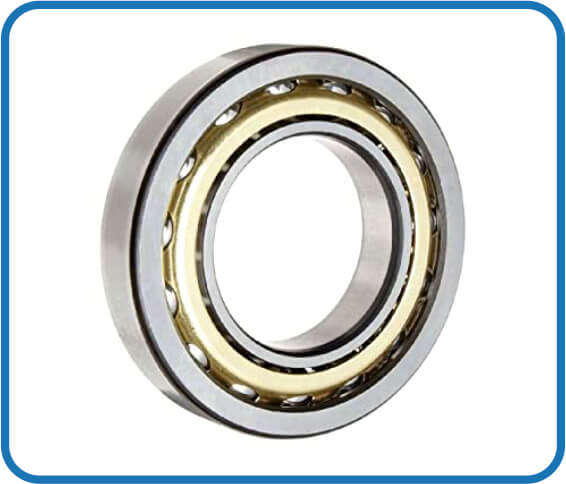

8. Single Row Angular Contact Bearings

Single-row ball bearings with oblique joint are non-demountable. They are manufactured in multiple series. They are characteristic with low friction, high rigidity and silent run. The bearings are suitable for high rpm.
Read More

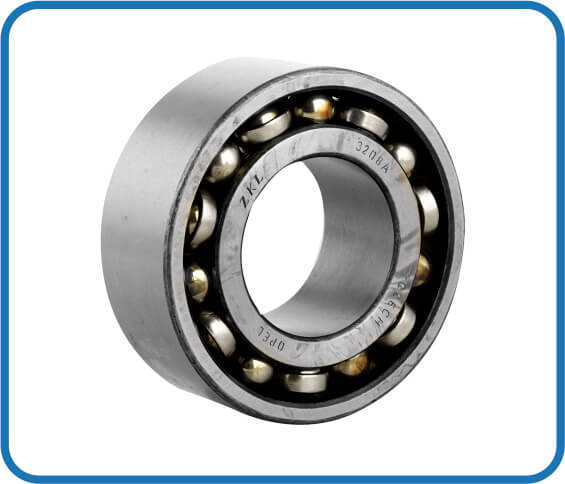

9. Double Row Angular Contact Bearings

Double-row ball bearings with oblique joint are non-demountable. They are made in multiple series. They feature silent run, high rigidity and ability to transmit relatively high simultaneously acting radial and axial load. Comparing to a couple of single-row ball bearings with oblique joint, their advantage is smaller construction width.
Read More
